Seimitsu Button Hack - Led on press

I'm planning to make an own aracade custom stick. Therefore I played arouns with the buttons (Seimitsu PS-14-GN-CP, weiƟ) and the result was little button led mod. The led will be illuminated on press.



Taken the micro switch and drilled a hole.


Kynar 30 wires fits in .

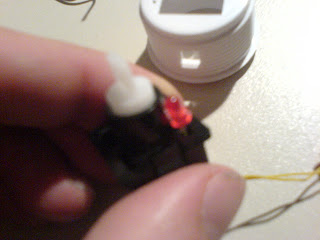

LowCurrent 3mm led in red.

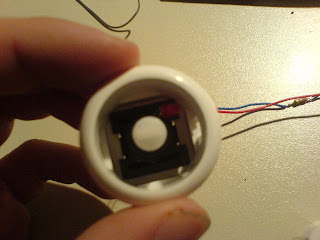

Here with button case.




Aaaaaand Action!

Sorry for bad quality.
