Button LED on Press Mod for Toodles Cuthulu

Hi out there,

finally the Cuthulu's arrived. Cuthulu is a little piece of hardware to built up Playstation 3 and PC Controller, mainly Arcade Sticks. The advantage against the UPCB or padhacking is the really easy assembly.

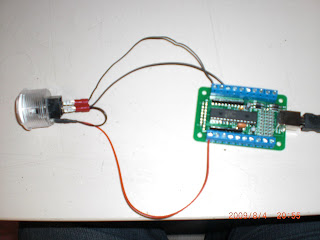

I've pimped up clear push buttons with red LEDs and wired them as easy as possible. Take a look:



Connect LED Cathode (black wire from led) to Button Signal Line.
Connect LED Anode to VSS (Red Wire)
Connect Button Ground Line to daisy chain GND (Black wire without led connection)



Connect red wire to VSS, Black wire from led to button to signal. And one black wire to GND






And Action





Have fun

9 comments:

vitor said...

hi. I want to use leds on a cthulhu, is it ok to wire up without resistors?
anode-button signal-VCC => cathode-button gnd-GND, is that correct?
the leds are 5V, I got them on gremlinsolutions.co.uk, doing it like in this post will work?

bencao74 said...

Use 220 ohm or something, then you should be safe!

Cathode - Button Signal
Anode - Resistor - VCC (5V)

Nothing else ;)

wiseless said...

Hi! I wonder if I could use it in 8 buttons without getting my USB fried or something in case of a combo when more than 1 led with turn on at the same time. Is there any risk? Only one resistor per led is enough?

vitor said...

can I use these images to make a tutorial in portuguese?

bencao74 said...

naturalmente. Aqui e diagrama

http://3.bp.blogspot.com/_YLXgzxS8cEc/SlXb2OMv8nI/AAAAAAAAAqI/d6fDhuMOXiU/s320/ledmodnoinvertersfinal.png

Omar said...

Hi! Great mod! I could only find 2.3V LEDs. Is there a way to use them with the 5V Cthulhu Vcc?

bencao74 said...

jep, buy normal leds and then use 220 ohm resistors. This makes them work with 5V

José said...

Hey, great tutorial... but I'm wonder... does the button gets illuminated everytime it's been pushed or does it permanently? I'm asking because I'm going to mod an X-Arcade Solo with the Cthulhu and another set of joystick and buttons and since I want it for play mostly on my PS3 I was thinking of add the PS Home Button but I want it in multi-colored led and as you can imagine, it requires to keep illuminated all the time while changing colors.

Andrew Valenzuela said...

Would this be possible for Xbox 360 pcb that terminals have been added to? Where would the red wire be attached? And I am using 3mm green LEDs what type of resistor should I be using?

Thanks
