Sunday 13 September 2009

Landoo crew Wirinig


finished the harness. This one is little more complicated to wire. So very clean work is a must here. Overall there`re 16 wires for the led s and 32 wires for the buttons, stick and GND Makes 48 wires in the case with daisy chain.

Red transparent Plexi

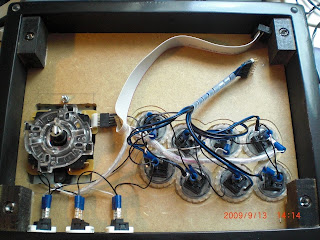

Complete overview. Ribbon connector is for stick and buttons control. Pinheader is for LED control.

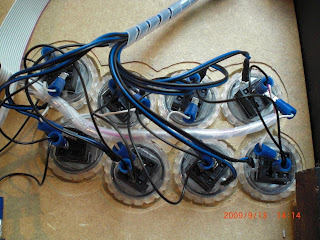

Daisy chain with black wires. Leds are wired with blue and black wires.

Stick connector

LED connector
